OpenLayers绘制区域Polygon及点击菜单弹窗

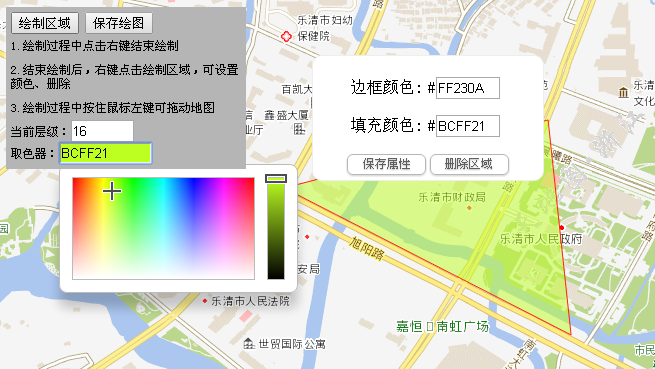

使用版本 v4.2.0 最后实现效果 下载demo
<!DOCTYPE html>
<html><head><meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta charset="utf-8">
<title></title>
<link rel="stylesheet" href="./css/ol.css" />
<link rel="stylesheet" href="./css/openlayers-object.css" />
<script src="./js/jquery-1.7.1.min.js" type="text/javascript"></script>
<script type="text/javascript" src='./js/ol.js'></script>
<script type="text/javascript" src='./js/jscolor-2.0.4/jscolor.min.js'></script>
<style type="text/css">
#box_relative {
position: absolute;
left: 10px;
top: 10px;
z-index: 100000;
}
body,html {
margin: 0;
padding: 0;
width: 100%;;
height: 100%;
overflow: hidden;
}
dl{width:100%}
dt,dd{width:50%;display:inline}
dd{margin:5px}
dd input{width:60px}
.white {
background: rgba(0, 0, 0, 0) -moz-linear-gradient(center top , #fff, #ededed) repeat scroll 0 0;
border: 1px solid #b7b7b7;
color: #606060;
}
.button {
border-radius: 0.5em;
box-shadow: 0 1px 2px rgba(0, 0, 0, 0.2);
cursor: pointer;
display: inline-block;
font-size: 12px;
margin: 0 2px;
outline: medium none;
overflow: visible;
padding: 0.2em 1.2em 0.22em;
text-align: center;
text-decoration: none;
text-shadow: 0 1px 1px rgba(0, 0, 0, 0.3);
vertical-align: baseline;
}
#box_relative .tooltip{
padding:5px;background:#b5b5b5 none repeat scroll 0 0;width:230px;font-size:10px
}
#box_relative .tooltip .explode div{
padding:5px 0px;
}
</style>
</head>
<body >
<div id="box_relative">
<div class="tooltip">
<input type="button" onclick="drawPolygon();" value="绘制区域" id="btnDrawPolygon" class="buttonClass">
<input type="button" onclick="saveAll();" value="保存绘图" id="btnDrawPolygon" class="buttonClass">
<div class="explode">
<div >1.绘制过程中点击右键结束绘制</div>
<div >2.结束绘制后，右键点击绘制区域，可设置颜色、删除</div>
<div >3.绘制过程中按住鼠标左键可拖动地图</div>
</div>
<div style="">当前层级：<input class="curlevel" type="text" value="" size="5"></div>
<div style="">取色器：<input class="jscolor " value="red" size="10"></div>
</div>
</div>
<div id="mapDIV" style="width: 100%;height: 100%; overflow:hidden;"></div>
<script type="text/javascript">
var openLayers,map,draw;
var indraw = false;
var overlay_arr = {}, upData = {};;
var center_lon = 120.980874667,center_lat = 28.116662747;
var projection = ol.proj.get('EPSG:4326');
var projectionExtent = projection.getExtent();
var size = ol.extent.getWidth(projectionExtent) / 256;
var resolutions = new Array(20);
var matrixIds = new Array(20);
for (var z = 0; z <=20; ++z) {
resolutions[z] = size / Math.pow(2, z);
matrixIds[z] = z;
}
/**
* 返回随机数
* @return string
*/
function randNum(length){
var str = '';
for(var i=0;i<length;i++){
str += Math.floor(Math.random()*10);
}
return str;
}
//加载浙江图层
map = new ol.Map({
layers: [
new ol.layer.Tile({
source: new ol.source.WMTS({
name: "浙江矢量15-17级",
url: 'http://srv{0-6}.zjditu.cn/ZJEMAP_2D/wmts',
layer: 'TDT_ZJEMAP',
style: 'default',
matrixSet: 'TileMatrixSet0',
format: 'image/png',
wrapX: true,
tileGrid: new ol.tilegrid.WMTS({
origin: ol.extent.getTopLeft(projectionExtent),
resolutions: resolutions.slice(14, 18),
matrixIds: matrixIds.slice(14, 18)
})
}),
minResolution: resolutions[17],
maxResolution: resolutions[14]
}),
new ol.layer.Tile({
source: new ol.source.WMTS({
name: "浙江矢量注记15-17级",
url: 'http://srv{0-6}.zjditu.cn/ZJEMAPANNO_2D/wmts',
layer: 'ZJEMAPANNO',
style: 'default',
matrixSet: 'TileMatrixSet0',
format: 'image/png',
wrapX: true,
tileGrid: new ol.tilegrid.WMTS({
origin: ol.extent.getTopLeft(projectionExtent),
resolutions: resolutions.slice(14, 18),
matrixIds: matrixIds.slice(14, 18)
})
}),
minResolution: resolutions[17],
maxResolution: resolutions[14]
}),
],
target: 'mapDIV',
view: new ol.View({
center: [center_lon, center_lat],
projection: projection,
zoom: 16,
maxZoom: 17,
minZoom: 15
})
});
var vector = new ol.layer.Vector({
source: new ol.source.Vector(),
style: new ol.style.Style({
fill: new ol.style.Fill({
color: 'rgba(255, 0, 0, 0.2)'
}),
stroke: new ol.style.Stroke({
color: '#ff0000',
width: 2
}),
image: new ol.style.Circle({
radius: 7,
fill: new ol.style.Fill({
color: '#ff0000'
})
})
})
});
var style = new ol.style.Style({
fill: new ol.style.Fill({
color: 'rgba(255, 0, 0, 0.2)'
}),
stroke: new ol.style.Stroke({
color: '#ff0000',
width: 1
}),
image: new ol.style.Circle({
radius: 5,
stroke: new ol.style.Stroke({
color: '#ff0000',
width: 1
})
/*
fill: new ol.style.Fill({
color: '#ff0000'
})
*/
})
});
map.addLayer(vector);
$(document).ready(function(){
//右键监听，
$(map.getViewport()).on("contextmenu", function(e){
e.preventDefault();
if(indraw){//正在绘制，触发停止绘图 会触发 drawend
draw.finishDrawing();
}else{
var coordinate = map.getEventCoordinate(e);//获取鼠标点击区域坐标
var pixel = map.getEventPixel(e.originalEvent);//根据点击的区域获取
var res = map.forEachFeatureAtPixel(pixel, function (feature, layer) {
return {feature:feature,layer:layer};
});
if(res != undefined){
var feature = res.feature;
if(feature != undefined){
var geometry = feature.getGeometry();
if(geometry.getType() == 'Polygon'){
var id = feature.getId();//获取之前绑定的ID
var tooltip = createInfoWindow(id);//出现菜单按钮，删除或设置颜色
tooltip.setPosition(coordinate);
}
}
}
}
});
map.getView().on("change:resolution",function(){
if(!(this.getZoom()%1 === 0)) return;
$('.curlevel').val(this.getZoom().toString());
if(indraw){//如果还在绘制过程中
}
});
$('.curlevel').val(map.getView().getZoom().toString());
});
//画面，区域绘制
function drawPolygon() {
draw = new ol.interaction.Draw({
source: vector.getSource(),
style: style,
type: /** @type {ol.geom.GeometryType} */ ('Polygon')
});
map.addInteraction(draw);//添加绘图工具
draw.on('drawstart',function(event) {//绘画开始
indraw = true;
var zoom = map.getView().getZoom();
});
draw.on('drawend',function(event) {//绘画完成触发时间
indraw = false;
map.removeInteraction(draw);
var str = 'polygon_' + randNum(5);//5位随机数
event.feature.setId(str);//绘制完成 ,给feature 设置id
var geometry = event.feature.getGeometry();
if(geometry.getType() == 'Polygon'){
var coordinates = geometry.getCoordinates();
var points = [];
$.each(coordinates,function(i,cs){
$.each(cs,function(j,c){
var point = {x:c[0] ,y:c[1] };
points.push(point)
});
});
upData[str] = {"point":points,"pgcolor":"FF230A",'pgfillcolor':"FF230A"};
}
});
return;
}
//创建窗口
function createInfoWindow(id){
var tooltipElement = document.createElement('div');
tooltipElement.className = 'tooltip tooltip-static';
var tooltip = new ol.Overlay({
element: tooltipElement,
offset: [0, -15],
positioning: 'bottom-center'
});
overlay_arr[id] = tooltip;
tooltipElement.innerHTML = createInfoWindowHtml(id,upData[id]);
map.addOverlay(tooltip);
return tooltip;
}
function createInfoWindowHtml(index,item){
str = "<div style='width:220px;text-align:center; margin:0px auto;background-color:#fff;padding:5px;border:1px solid #eee;border-radius:10px' id='gondiv_"+index+"'>"
str += "<dl><dt><label>边框颜色:</label></dt><dd>#<input type='text' value='" + item.pgcolor + "' id='pgcolor' placeholder='填写颜色编码 如:#B2B2B2'></dd></dl>" +
"<dl><dt><label>填充颜色:</label></dt><dd>#<input type='text' value='" + item.pgfillcolor + "' id='pgfillcolor' placeholder='填写颜色编码 如:#B2B2B2'></dd></dl>";
str += "<a class='button white' href='javascript:saveProp(\"" + index + "\")'>保存属性</a><a class='button white' href='javascript:delProp(\"" + index + "\")'>删除区域</a>";
str += "</div>";
return str;
}
function saveProp(key){
var pgcolor = $("#gondiv_"+key).find('#pgcolor').val();
var pgfillcolor = $("#gondiv_"+key).find('#pgfillcolor').val();
var pg = upData[key];
if(pg!=null){
upData[key]['pgcolor'] = pgcolor;
upData[key]['pgfillcolor'] = pgfillcolor;
var overlay = overlay_arr[key];
delOverlay(overlay);
//改变图层颜色 边框颜色 填充设定透明度 需将#DDDD转换为 rgb 使用
var style = new ol.style.Style({
fill: new ol.style.Fill({
color: colorRgb('#'+pgfillcolor,0.5)
}),
stroke: new ol.style.Stroke({
color: '#'+pgcolor,
width: 1
}),
});
map.getLayers().forEach(function(layer, i) {
var source = layer.getSource();
if(source instanceof ol.source.Vector){
var feature = source.getFeatureById(key);
if(feature != undefined){
feature.setStyle(style);
}
}
});
}
}
function delProp(key){
var overlay = overlay_arr[key];
delOverlay(overlay);
map.getLayers().forEach(function(layer, i) {
var source = layer.getSource();
if(source instanceof ol.source.Vector){
var feature = source.getFeatureById(key);
if(feature != undefined){
source.removeFeature(feature);
}
}
});
}
function delOverlay(overlay){
if(typeof overlay != "undefiend" && overlay != null ){
map.removeOverlay(overlay);
}
}
//-------------------------------------
/*RGB颜色转换为16进制*/
function colorHex(rgb){
var that = rgb;
//十六进制颜色值的正则表达式
var reg = /^#([0-9a-fA-f]{3}|[0-9a-fA-f]{6})$/;
// 如果是rgb颜色表示
if (/^(rgb|RGB)/.test(that)) {
var aColor = that.replace(/(?:\(|\)|rgb|RGB)*/g, "").split(",");
var strHex = "#";
for (var i=0; i<aColor.length; i++) {
var hex = Number(aColor[i]).toString(16);
if (hex === "0") {
hex += hex;
}
strHex += hex;
}
if (strHex.length !== 7) {
strHex = that;
}
return strHex;
} else if (reg.test(that)) {
var aNum = that.replace(/#/,"").split("");
if (aNum.length === 6) {
return that;
} else if(aNum.length === 3) {
var numHex = "#";
for (var i=0; i<aNum.length; i+=1) {
numHex += (aNum[i] + aNum[i]);
}
return numHex;
}
}
return that;
};
//-------------------------------------------------
/*16进制颜色转为RGB格式*/
function colorRgb(color,alpha){
var sColor = color.toLowerCase();
//十六进制颜色值的正则表达式
var reg = /^#([0-9a-fA-f]{3}|[0-9a-fA-f]{6})$/;
// 如果是16进制颜色
if (sColor && reg.test(sColor)) {
if (sColor.length === 4) {
var sColorNew = "#";
for (var i=1; i<4; i+=1) {
sColorNew += sColor.slice(i, i+1).concat(sColor.slice(i, i+1));
}
sColor = sColorNew;
}
//处理六位的颜色值
var sColorChange = [];
for (var i=1; i<7; i+=2) {
sColorChange.push(parseInt("0x"+sColor.slice(i, i+2)));
}
if(alpha >0 ){
return "rgba(" + sColorChange.join(",") + "," + alpha + ")";
}else{
return "RGB(" + sColorChange.join(",") + ")";
}
}
return sColor;
};
/* 添加图层选中时间 选中后 变蓝色，删除feature 后 蓝色区域还在，要重新点击地图 才消失，未找到原因，暂时使用右键出现菜单代替
* var clickEvent = function(e){
if(indraw ==false ){
var ois =e.target;//获取事件对象，即产生这个事件的元素-->ol.interaction.Select
var collection = ois.getFeatures();//获取这个事件绑定的features-->返回值是一个ol.Collection对象
var features = collection.getArray();//获取这个集合的第一个元素-->真正的feature
if(features.length>0 ){
var feature = features[0];
var geometry = feature.getGeometry();
if(geometry.getType() == 'Polygon'){
var extent = geometry.getExtent();
var center = [(extent[0] + extent[2])/2, (extent[1] + extent[3])/2];
var id = feature.getId();//获取之前绑定的ID 出现菜单按钮，删除或设置颜色
var tooltip = createInfoWindow(id);
tooltip.setPosition(center);
}
}
}
}
var inSelect = {
init: function() {
this.select = new ol.interaction.Select({
condition: ol.events.condition.click
});
map.addInteraction(this.select);
this.setEvents();
},
setEvents: function() {
this.select.on('select',this.selectEvent);//触发选中事件
},
setActive: function(active) {
this.select.setActive(active);
},
selectEvent:function(e){
clickEvent(e);
}
};
inSelect.init();*/
</script>
